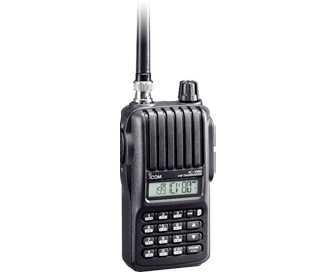

VHF TRANSCEIVER IC-V80LM

Pasted Graphiclogo_std_millogo_std_ip54

Tough body and powerful audio!
750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
* Typical value with internal speaker.
Powerful 5.5W of output power
IP54 and MIL-STD-810 rugged construction
Large capacity Li-Ion battery pack provides 19 hours* of operating time
* Typical operation. 5:5:90 duty cycle with auto power save.
Integrated VOX function
200 memory channels, 1 call channel and 6 scan edges
Built-in CTCSS and DTCS encoder/decoder
5 character alphanumeric display
Priority, program, memory, skip and tone scanning
16 DTMF autodial memories
Repeater lockout and busy channel lockout
Time-out-timer
Power save function and auto power off
PC programmable (With optional CS-V80)
Transceiver-to-transceiver cloning (Optional)
Wide/narrow channel spacing
BATTERY CASE
BP-263
AA(LR6) × 6 cells
BP-263



BATTERY PACKS
BP-264
(Ni-MH)
7.2V/1400mAh
BP-264
BP-265
(Li-Ion)
7.4V/1900mAh (min.) 2000mAh (typ.)
BP-265


DESKTOP CHARGERS
BC-192
Regular charger for BP-264 (Ni-MH battery)
(Use with BC-147S)
BC-192
BC-191
Rapid charger for BP-264 (Ni-MH battery)
(Use with BC-123S)
BC-191
BC-193
Rapid charger for BP-265 (Li-Ion battery)
(Use with BC-123S)
BC-193

AC ADAPTERS
BC-147S
12V/200mA
(Use with BC-192)
BC-147S*
BC-123S
12V/1A
(Use with BC-191 or BC-193)
BC-123S*


* BC-123SA/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC.
POWER SUPPLY CABLES
CP-23L
Cigarette Lighter Cable
(Use with BC-191 or BC-193)
CP-23L
OPC-515L
DC Power Cable
(Use with BC-191, BC-192 or BC-193)
OPC-515L


SPEAKER-MICROPHONES
HM-158L
Compact type speaker-microphone
HM-158L
HM-159L_SC
Full size durable speaker-microphone
HM-159L


EARPHONE-MICROPHONE
HM-153L
Durable earphone-microphone
HM-153L



HEADSETS
HS-94
Earhook headset with flexible boom microphone
(Use with OPC-2004)
HS-94
HS-95
Behind-the-head headset with flexible boom microphone
(Use with OPC-2004)
HS-95
HS-97
Throat microphone that fits around your neck and picks up speech vibrations
(Use with OPC-2004)
HS-97

PLUG ADAPTER CABLE
OPC-2004
OPC-2004



BELT CLIP
MB-124
Alligator type
MB-124



CLONING CABLES
OPC-474
OPC-474
OPC-478UC
Transceiver to PC USB cable
OPC-478UC
no_photo
Transceiver to PC RS-232C cable
OPC-478

CLONING SOFTWARE
no_photo
CS-V80



ANTENNA
no_photo
VHF Antenna
FA-B2E


*1
9⁄32×413⁄32×13⁄16 in

Frequency coverage
(Differs according to version )

136–174MHz

Dimensions
(W×H×D; Proj. not included)

58×112×30 mm;
2

Weight
(approx.)

360g; 12.7oz
with antenna and BP-264

Output power
(typical values)

5.5W, 2.5W, 0.5W
at 7.2V DC

Sensitivity
(at 12dB SINAD)

0.14μV typ.

Audio output power
(at 10% distortion)

750mW typ. (Internal SP, 16Ω load)
450mW typ. (External SP, 8Ω load)

*1 Guaranteed range 144–148MHz.

All stated specifications are subject to change without notice or obligation.
