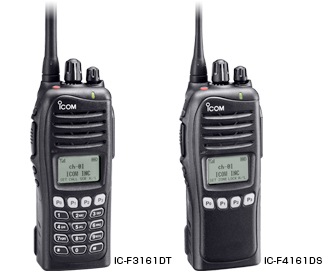

iDAS HANDHELD TRANSCEIVER IC-F3161DT/DS / IC-F4161DT/DS

Pasted Graphiclogo_std_idaslogo_std_millogo_std_ip55

LTR™/CONVENTIONAL/ DIGITAL* MULTI-MODE LAND MOBILE!
Designed and built for advanced communication needs, the IC-F3161D series handhelds are feature-rich with built-in multiple signalings and LTR™ trunking capability. Two optional slots support numerous extension capabilities including IDAS digital operation*.
* UT-126H is already installed in IC-F3161DT/DS, F4161DT/DS.
Basic LTR™ mode operation
Group, selective, and phone call are available in LTR™ mode.
512 memory channels with 128 zones
The 512 memory channel capacity with 128 zones allows you to divide and store a variety of channel groupings for versatile and efficient fleet management.
IDAS, 6.25kHz digital mode ready
The IDAS 6.25kHz digital mode is available with the UT-126H digital unit.* * Alreadｙ installed.
Dot matrix, multi-function LCD
The IC-F3161D series has a large dot matrix display to show information with high resolution characters. The display setting is programmable to show one line and 12 characters, or two lines and 24 characters. The bottom row shows assigned functions to the [P0] to [P3] buttons.
Voting scanning
The Voting scan detects the signal strength level of repeater sites and automatically selects the strongest station, useful for roaming between 2 or more repeater sites. Once you program for voting mode in a memory zone, you can easily start voting mode operation by changing the zone setting.
Loud audio output with BTL amp
The IC-F3161D series employs a BTL amplifier that increases the audio output and the built-in audio compander provides clear, low noise communications.
Other features
  • Built-in inversion type voice scrambler and optional UT-109R and UT-110R for higher security
    Inversion type voice scrambler is not compatible with UT-109R/UT-110R voice scrambler.
  • The mode independent setting automatically selects the scanning list, according to the operating channel
  • Nuisance delete
  • MDC 1200 compatible
  • IP55 dust-protection and water jet resistance
  • Optional man down unit, UT-124R and lone worker function
  • Embedded ESN (Electronic serial number) and more...

BATTERY PACKS
BP-230_N
(Li-Ion)
7.4V
980mAh
BP-230N
BP-232_N
(Li-Ion)
7.4V
2000mAh
BP-232N


BATTERY CASE
BP-240
AAA(LR03)×6 cells
BP-240



CHARGERS
BC-119N
Rapid charger
(AD-106 is required)
BC-119N
BC-121N
Rapid multicharger
(AD-106 is required)
BC-121N
BC-160
Rapid charger
BC-160
BC-171
Regular charger
BC-171
CHARGER ADAPTER
AD-106
(Use with BC-119N/BC-121N)
AD-106



AC ADAPTERS
BC-145S
16V/1A
(Use with BC-160 or BC-119N)
BC-145S
BC-147S
12V/200mA
(Use with BC-171)
BC-147S
BC-157S
12V/6.6A
(Use with BC-121N)
BC-157S

SPEAKER-MICROPHONES
HM-131_SC
HM-131SC
HM-159L_SC
HM-159SC
HM-168
IPX7
HM-168
HM-169
IP57
HM-169
HM-170GP
With GPS receiver IP57
HM-170GP



HEADSETS
HS-94
Earhook type with boom microphone
(Use with VS-1SC)
HS-94*
HS-95
Behind-the-head type
(Use with VS-1L)
HS-95*
HS-97
Throat microphone type
(Use with VS-1SC)
HS-97*

VOX/PTT CASE
VS-1SC
VS-1SC



EARPHONE
SP-13
SP-13



EARPHONE ADAPTER
AD-52
AD-52



BELT CLIPS
MB-93
Swivel type
MB-93
MB-94
Alligator type
MB-94


LEATHER BELT HANGERS
MB-96N_2
Swivel type. MB-86 and MB-93 swivel joints supplied.
MB-96N
MB-96F
Fixed type
MB-96F


DC POWER CABLE
OPC-656
12–20V DC CABLE
(Use with BC-121N)
OPC-656



ANTENNA
fa-sc25v
136-150MHz
FA-SC25V
fa-SC55v
150-174MHz
FA-SC55V
fa-sc25u
400-430MHz
FA-SC25U
fa-sc57u
430-470MHz
FA-SC57U
fa-sc72u
470-520MHz
FA-SC72U



CUT ANTENNAS
FA-SC61VC
136-174MHz
FA-SC61VC
FA-SC61US
380-520MHz
FA-SC61US


STUBBY ANTENNAS
FA-SC56VS
150-162MHz
FA-SC56VS
FA-SC57VS
160-174MHz
FA-SC57VS
FA-SC73US
450-490MHz
FA-SC73US

INTERNAL UNITS
UT-109_R
VOICE SCRAMBLER UNIT
(Non-rolling type)
UT-109R
UT-110_R
VOICE SCRAMBLER UNIT
(Rolling-type)
UT-110R
UT-124_R
MAN DOWN UNIT
UT-124R
UT-126H
IDAS digital unit
(Already installed)
UT-126H
*Not waterproof.

General



IC-F3161DT/DS
IC-F4161DT/DS
Frequency coverage
(Varies according to version)
136–174 MHz
400-470 MHz
450-512 MHz
350-400MHz (Non - FCC)
Number of channels
512 ch/128 zones
Channel spacing
(Varies according to version)
12.5/25, 15/30
6.25kHz
12.5/25
6.25kHz
Type of emission
16K0F3E, 11K0F3E, 11K0F7E/D,
8K50F3E, 8K10F1E/D,
4K00F1E/D
Current drain
Tx High
1.5A
1.8A
Rx
Stand-by
150mA
140mA
Max. audio
600mA
Dimensions
(projections not included; W×H×D)
53×136×38.9 mm
2 3 ⁄32×511/32×1 17 ⁄32 in
Weight (approx.)
340g; 12.0oz (with BP-232N)

TRANSMITTER



IC-F3161DT/DS
IC-F4161DT/DS
RF output power
5W
Spurious emissions
75dB (typ.)
Frequency stability
±1.0ppm
Audio harmonic distortion
3% typical
40% deviation
FM Hum and Noise
46dB typ. (W)
40dB typ. (N)
Digital FSK error

5% max.

RECEIVER



IC-F3161DT/DS
IC-F4161DT/DS
Sensitivity at 12dB SINAD
0.25μV (typ.)
Sensitivity
FM (W, N)
0.25μV typ. (at 12dB SINAD)
Digital
0.20μV typ. (at 5% BER)
Adjacent channel selectivity (W/N)
75/68dB (typ.)
Spurious response rejection
70dB (min.)
Intermodulation rejection
74dB (typ.)
AF output power
(at 5% distortion with an 8Ω load)
500mW (typ.)

FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS



IC-F3161DT/DS IC-F4161DT/DS
Number of option slots
2*
CTCSS/ DTCS
encoder
Available
decoder
Available
2-Tone
encoder
Available
decoder
Available
5-Tone
encoder
Available
decoder
Available
DTMF autodial
Available
DTMF decoder
Available
Voice Scrambler
Inversion
Available
Non-rolling
UT-109R
Rolling
UT-110R
APCO P25 digital
-
AES encryption
-
DES encryption
-
FIPS 140-2 Level 1
-
IDAS digital
UT-126H**
MPT 1327
-
MDC 1200
Available
LTR™ trunking
Available
PassPort
-
Man Down function
UT-124R
Intrinsically safe
-
Vibration alert
-
Voice recorder
-

* One for UT-126H digital unit and one for another option board.
** Already installed,
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard

MIL-810 F
Method, Proc.
Low Pressure Storage

500.4 I

Low Pressure Operation

500.4 II

High Temperature Storage

501.4 I

High Temperature Operation

501.4 II

Low Temperature Storage

502.4-3 I

Low Temperature Operation

502.4-3 II

Temperature Shock

503.4 I

Solar Radiation

505.4 I

Rain Blowing

506.4 I

Rain Drip

506.4 III

Humidity Induced

507.4

Salt Fog

509.4

Dust Blowing

510.4 I

Vibration

514.5 I

Shock Functional

516.5 I

Shock Transit Drop

516.5 IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

All stated specifications are subject to change without notice or obligation.
