2022 Mains power supply

The Barrett 2022 is a 13.8 V DC regulated,
21 Amp power supply capable of operating on AC input voltages from 88 V AC to 264 V AC without input voltage switching. It is designed to power the Barrett 2000 series of HF transceivers and accessories.

The 2022 power supply incorporates loudspeakers that connect to 2000 series transceivers via the power cable when used in a base station configuration.

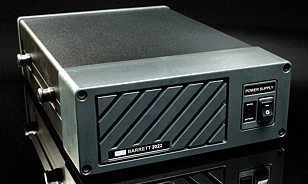

2022new

The 2022 has a battery standby system comprising a charging circuit with a true automatic no-break changeover, in case of mains power supply failure.

Pasted Graphic

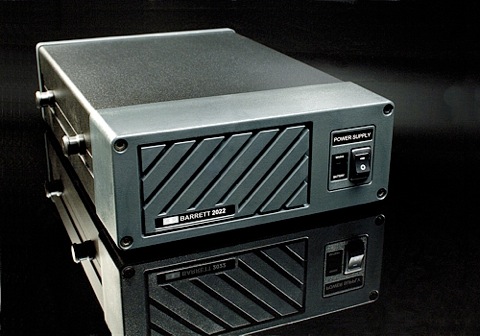

2022 Mains power supply

Pasted Graphic 1

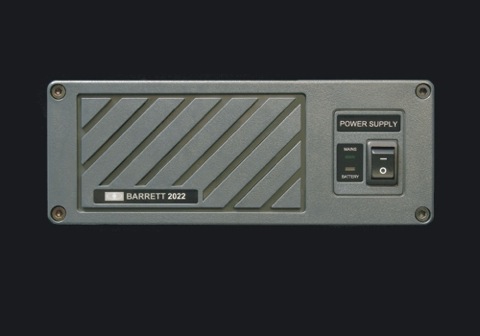

Barrett 2022 Mains power supply front panel

Pasted Graphic 2

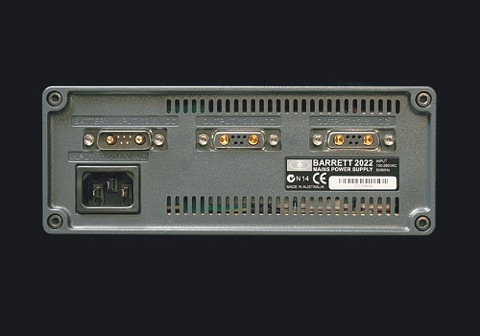

Barrett 2022 Mains power supply rear panel

Pasted Graphic 3

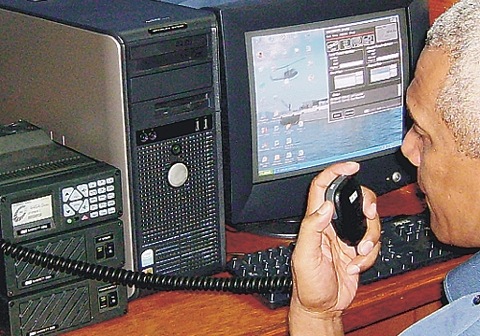

2022 Mains power supply in use as part of a base station configuration

Pasted Graphic 4

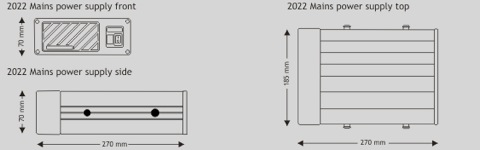

2022 Dimensions
