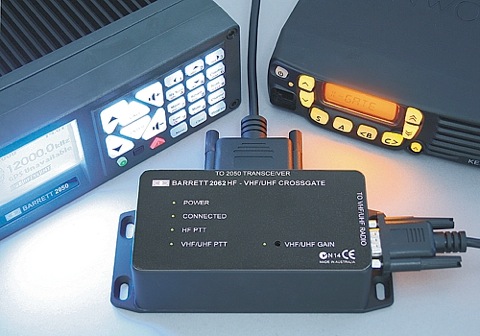

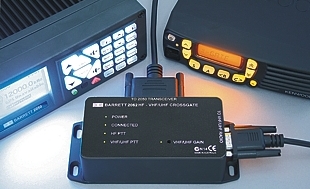

2062 HF-VHF/UHF crossgate

The 2062 HF-VHF/UHF crossgate provides seamless communications between HF and VHF/UHF networks.

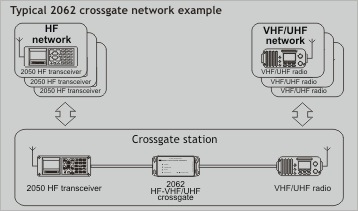

The Barrett 2062 Crossgate is an effective and affordable solution for extending the line of sight reach of a conventional VHF/UHF networks by linking them to an HF network using Barrett's HF transceivers.

The 2062 can also be used to give field operators with VHF/UHF handheld radios



access to the HF network when away from their vehicles. The 2062 crosspatch links or unlinks the HF and VHF/UHF networks by either a specific Selcall sent from a station on the HF network or by a specific DTMF sequence sent by a station on the VHF/UHF network.

When the networks are linked, received audio from the HF network is broadcast on the VHF/UHF network and vice versa.


2062 HF-VHF/UHF crossgate


2062 HF-VHF/UHF crossgate


2062 HF-VHF/UHF crossgate

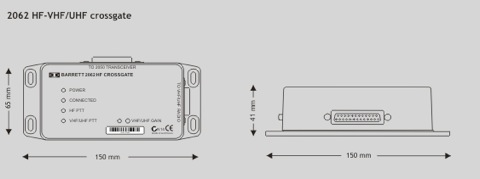

2062 Dimensions
