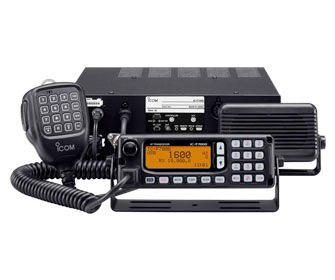

HF Transceiver IC-F7000
ADVANCED HF COMMUNICATION MADE EASY
The IC-F7000 is an HF land mobile transceiver especially designed for long distance communications. The IC-F7000’s advanced functions and features make HF LMR operation simple and efficient for user’s whether you are a skilled operator or not.
Selective call capabilities
The selective call uses a unique calling address like a telephone number and allows you to make a call directly to a desired station or group. Selcall, Selective beacon, GPS position*1, Page, Telcall*2, Status, Emergency and RFDS call*3 can be made.
*1 External GPS receiver is required.
*2 Please consult with a telephone interconnect service provider for details.
*3 Australia version only.
ALE (Automatic Link Establishment) capabilities
The ALE function will check frequency propagation and strength to automatically select the highest quality signal for the best communication possible. The ALE system meets with the basic requirements of MIL-STD 188-141-B. ALE individual/net call, ALE sounding and ALE AMD (Up to 90-characters) are available.
Automatic tuning antenna
The AT230 automatic tuning antenna* is recommended for use with the IC-F7000. The AT230 fully covers 2–30MHz. It is also easily installed to a vehicle.
Other features
- Wide band coverage receiver-0.5 to 29.9999MHz
- Full dot-matrix display
- Built-in DSP filter for flexible filter selection. Optional filters not required
- PC Remote control using the NMEA 0183 format
- GPS input (NMEA0183 version 3.01)
- External 32MHz reference input for accurate tuning
- Voice, S-meter and Call mute
- 400 regular channels, 120 ALE IDs, 100 Selcall IDs and 100 telephone numbers
- Controller, speaker and main (RF) unit-three-piece flexible configuration
- 125W (PEP) output power* (* 1.6-3.99MHz Gen version only)
ANTENNA ELEMENT
| AH-2b | | | |
| AH-710 | | | |
| MN-100 |
| MN-100L | | |
| AT-130 |
| AT-140 | | |
| OPC-1286 | 10m; 32.8ft
| OPC-1287 | 5m; 16.4ft | |
| HM-155 | | | |
| SM-50 | Dynamic microphone | | |
| OPC-589 | 8-Pin microphone connection | | |
| SP-25 | | | |
| RC-26 | | | |
| AT230 | AUTOMATIC TUNING ANTENNA |
General
| IC-F7000 | |
| Frequency coverage | Rx | 0.5–29.999MHz (Continuous) | Tx | 1.6–29.999MHz* |
Number of channels | 500 channels | |
Type of emissions | J3E (USB, LSB), J2B (AFSK), F1B (FSK), A1A (CW), A3E (AM) | |
Power supply requirements | 13.8V DC (10.8–15.6V DC) | |
Current drain | Tx High | 17/12A | Rx Max. | 3.0A |
Dimensions | Main unit | 240×72×239 mm; | Controller unit | 150×50×51 mm; | 29/32×131/32×2 in
Weight (approx.) | Main unit | 4.6kg; 10.1lb | Controller unit | 220g; 7.7oz |
| IC-F7000 | |
| RF output power | Australia | 100/50/10W PEP | General | 125/50/10W PEP (1.6–3.99MHz) |
Spurious emissions | –43dB | |
| IC-F7000 | |
| Sensitivity (at 20dB SINAD) | J3E | 25.1μV emf, 12.6 μV (0.5–1.59MHz) | A3E | 200μV emf, 100μV (0.5–1.59MHz) |
Squelch sensitivity | J3E | 10μV/32mV (threshold/tight; at 13.8MHz) | A3E | 32μV/320mV (threshold/tight; at 1.0MHz) |
Spurious response rejection | 70dB | |
AF output power | 4.0 W | |
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F Method, Proc. |
| High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4-3 I |
Low Temperature Operation | 502.4-3 II |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Also meets equivalent MIL STD 810 -C, -D and -E.
All stated specifications are subject to change without notice or obligation.
