2075 HF High power transmitters

The Barrett high power 2075 HF transmitters can be set to deliver between 300 W and 1 kW PEP output power from 2 to 30 MHz in all modes and at 100% duty cycle.

The transmitters come as a complete package with a 2050 high duty cycle exciter, power supply, RF linear power amplifier; interconnect cables,
AC power distribution panel and all rack mount hardware.The RF power amplifier is a rugged solid state unit with a comprehensive LCD display that displays the amplifier operating parameters.

2075n2

No tuning adjustments are required and the amplifier’s ALC system protects the unit from severe mismatches.The switch mode power supply operates from supply voltages between 110 to 250 VAC with no switching and at all power levels.

Pasted Graphic

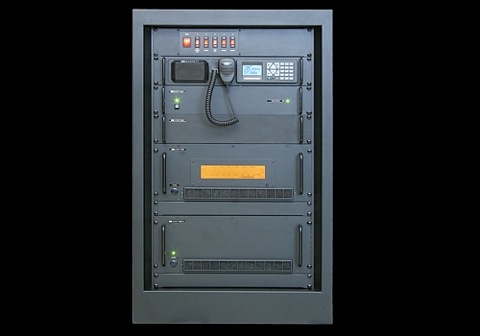

2075 High power transmitter in 18U rack mount unit

Pasted Graphic 1

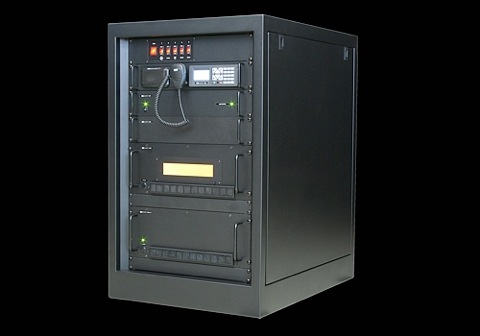

2075 High power transmitter in 18U rack mount unit

Pasted Graphic 2

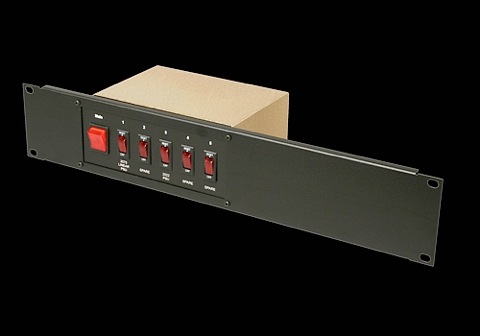

Barrett AC power reticulation system

Pasted Graphic 3

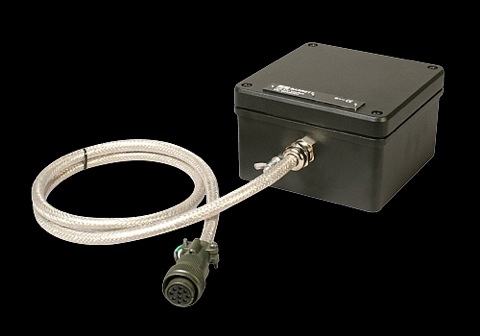

1kW automatic antenna tuner opto coupled interface

Pasted Graphic 4

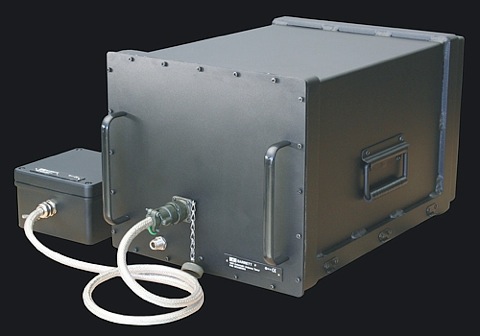

1kW automatic antenna tuner

Pasted Graphic 5

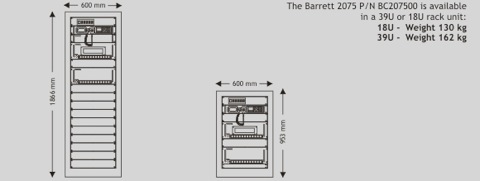

2075 Dimensions
